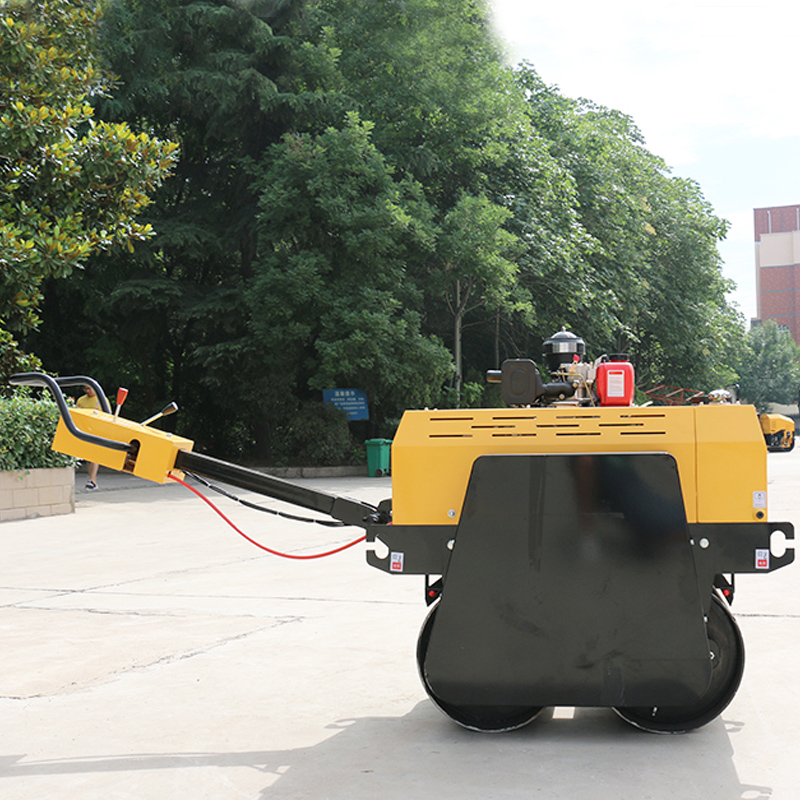

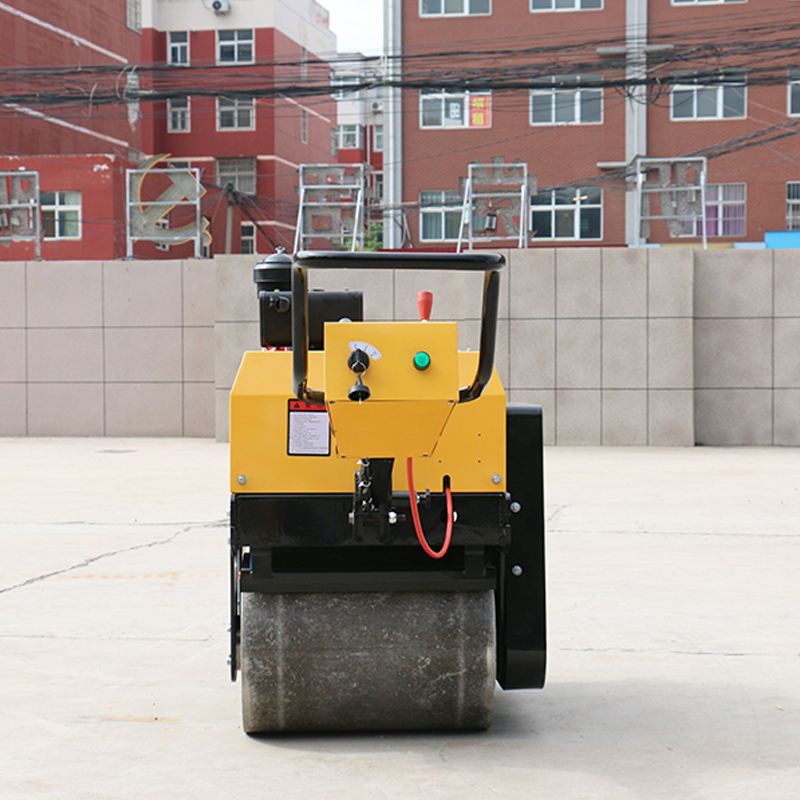

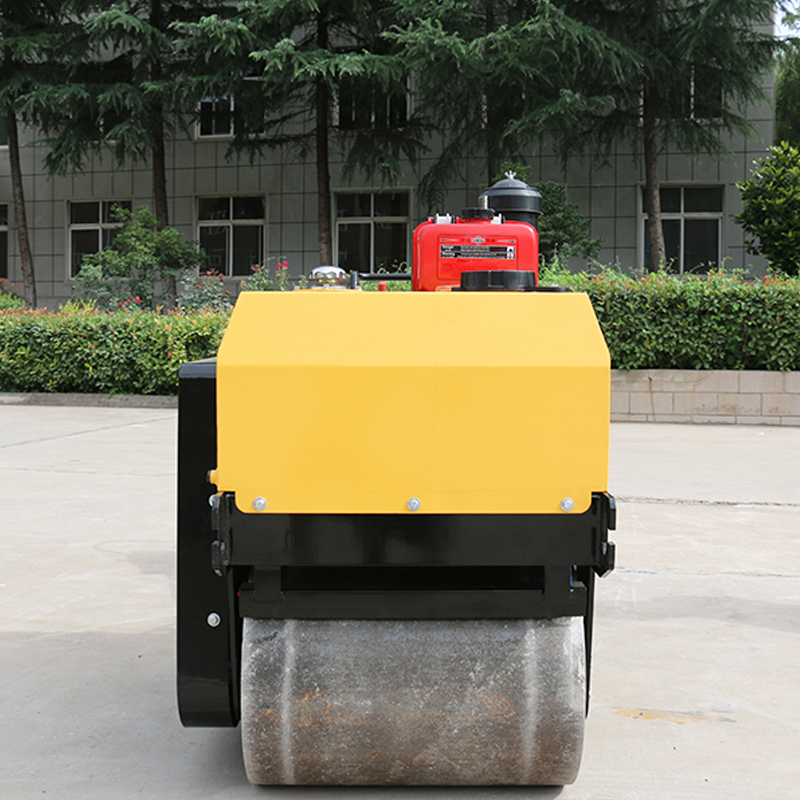

Lutong LTS06 Walk Behind Mini Vibratory Road Roller Dual Drum Soil Compactor
Lutong LTS06 is a 0.6-ton walk-behind dual drum vibratory road roller, specially designed for narrow-space compaction jobs. It weighs 520kg, equipped with reliable 6HP Changchai diesel engine with electric start, full hydraulic two-wheel drive for strong climbing capacity up to 25%. With 20KN exciting force and 600mm wide steel drums, it efficiently compacts asphalt, gravel and soil in trenches, sidewalks, gardens and road repair works.
$0
Product Details
Product Details
LTS06 Hydraulic walking behind vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m, building construction, back filling for
pipeline and gymnasium ground.
Main Characteristic:
1.The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
2.All wheel drive, strong climbing capability;
3.Using CFI78F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;
4.Designed with guide wheel and joystick, it is labor saving and easy to control. Adopt imported pump and starting motor, CVT.
Main Technical parameters
Model | LTS06 |
Operating mass | 520kg |
Vibration amplitude | 0.35mm |
Centrifugal force | 20Kn |
Vibration frequency | 70Hz |
Travel speed | 0-3Km/h |
Grade ability | 25% |
Overall dimension (LxWxH) | 2420x780x1190mm |
Vibration drum diameter | 425mm |
Drum width | 600mm |
Diesel engine power | 6hp |
Diesel engine model | CF178F |
Sprinkler tank capacity | 32L |
Ship | 30units/40HQ |

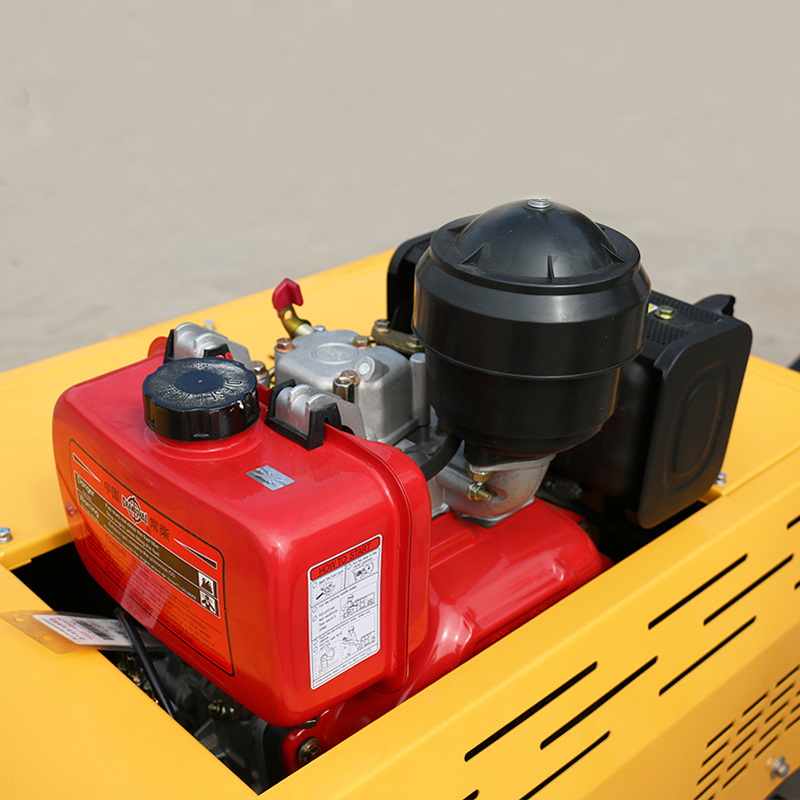

Famous brand national engine with superior
Reliability,performance and
low fuel consumption.

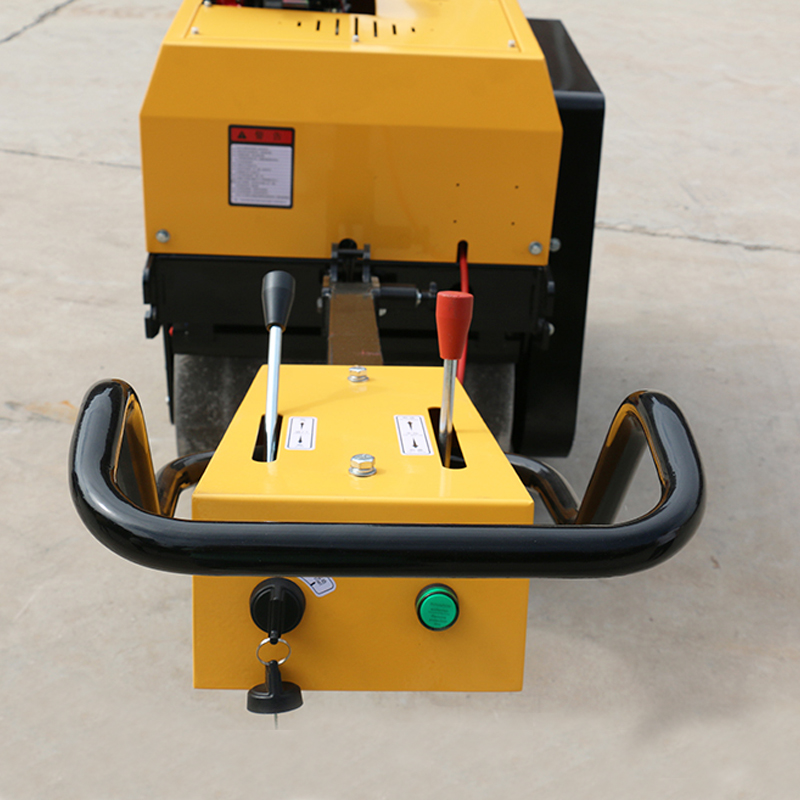

Forward and reverse running and vibration switch all together.
The roller is stepless hydraulic front and rear two drum drive.

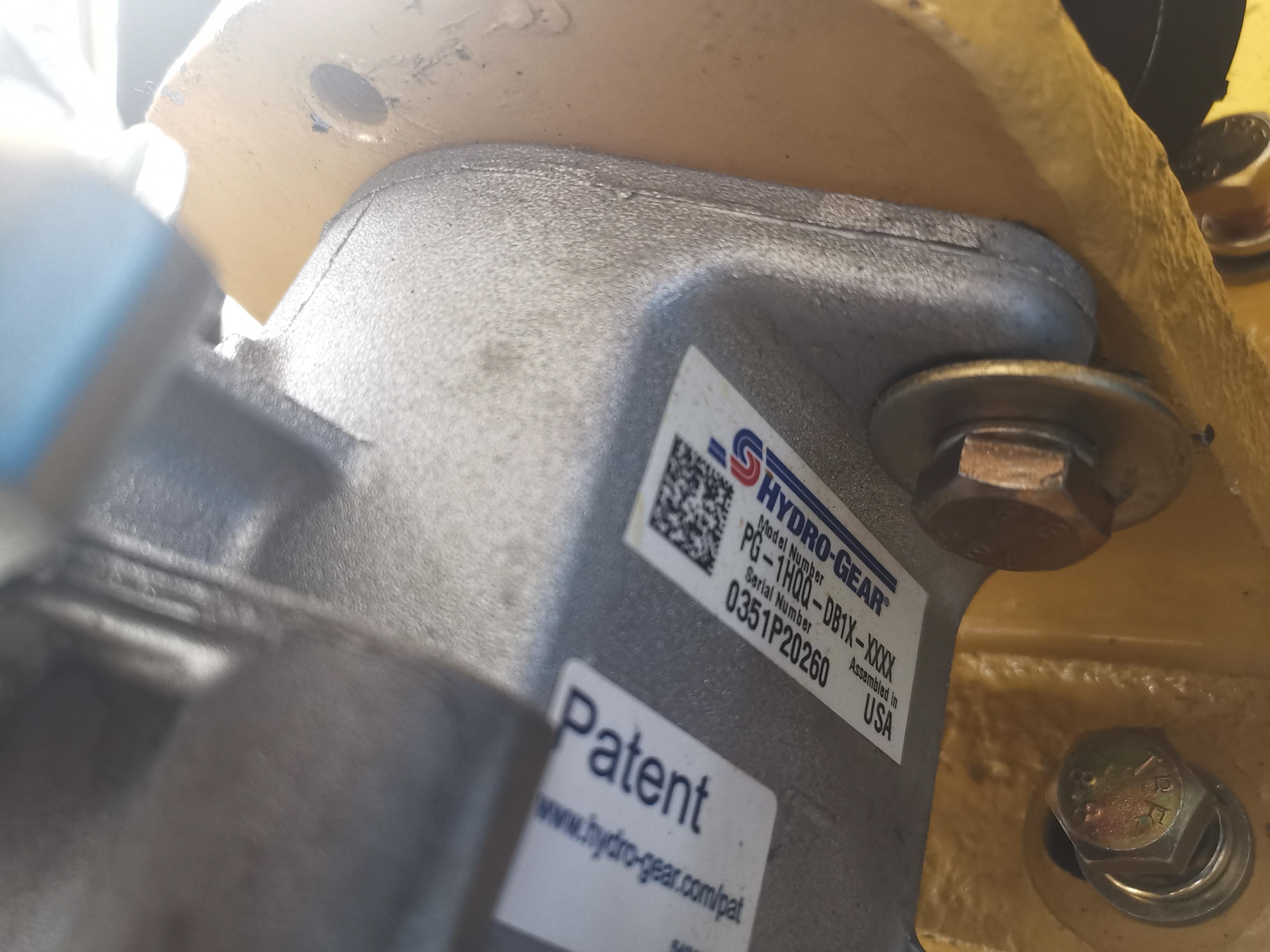

Hydraulic system is famous brand.
